PRODUCTS I SHRINKING

UNIQUE SHRINK UNITS WITH HIGHEST PRECISION

At GDE-Werkzeuge you will receive an extensive range of shrinking devices and liquid coolers for every application. We offer everything from small devices for shrinking micro tools to large devices for shrinking tools in heavy machining.

The digitalisation of our shrinking units is a particular focus, so that new user interfaces with touch displays are available for our US 1100 series shrinking units, which are equipped with automatic cooling and monitoring functions as standard.

GDE-Werkzeuge make shrinking your tools much more effective

IDEAL

SHRINK UNITS

+ Shrink unit US 1100 horizontal

+ Shrink unit US 1100 vertical

+ Micro-Shrink unit MS 3.0

+ Liquid Cooler FKS 04S automatic

+ Liquid Cooler FKS 04 manual

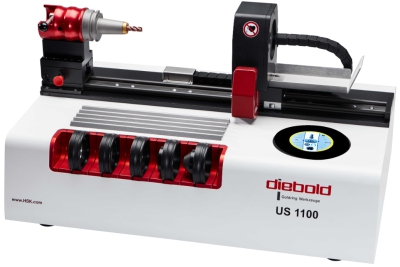

SHRINK UNIT US 1100 HORIZONTAL

GDE I DIEBOLD

With the shrink unit US 1100 horizontal, shrink fit holders from Ø 3-32 mm (carbide) and from Ø 6-32 mm (HSS) can be shrunk with fixed parameters. This allows you to shrink your tools up to shrink lengths of approx. 500 mm.

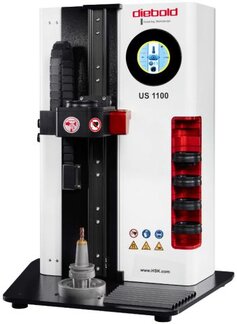

SHRINK UNIT US 1100 VERTICAL

GDE I DIEBOLD

With the shrink unit US 1100 vertical, shrink fit holders from Ø 3-32 mm (carbide) and from Ø 6-32 mm (HSS) can be shrunk with fixed parameters. This allows you to shrink your tools up to shrink lengths of approx. 500 mm.

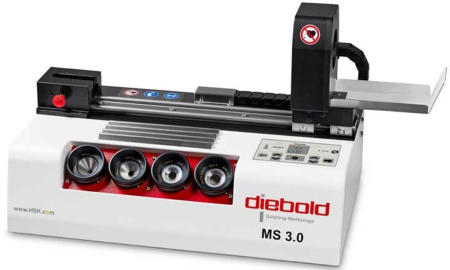

MICRO-SHRINK UNIT MS 3.0

GDE I DIEBOLD

The Micro-Shrink MS 3.0 is particularly suitable for slim, thin-walled and extremely short shrink fit chucks, but standard chucks up to Ø 16 mm and TER11-TER20 collets can also be shrunk. This allows you to shrink fit your tools up to shrink lengths of approx. 250 mm.

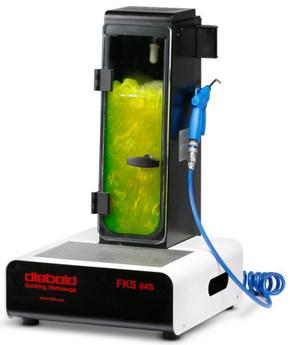

LIQUID COOLER FKS 04S AUTOMATIC

GDE I DIEBOLD

The Liquid Cooler FKS 04S is ideally suited for contour-independent, rapid cooling, cleaning and preservation. The cooling and drying cycle runs automatically in approx. 40 seconds using the start button.

LIQUID COOLER FKS 04 MANUAL

GDE I DIEBOLD

The Liquid Cooler FKS 04 is ideally suited for contour-independent, rapid cooling, cleaning and preservation. The cooling and drying cycle is controlled manually using the selector switch.
